GE Logiq E9 Ultrasound System Control Board 5207000-82
GE Logiq E9 Ultrasound Control Board 5207000-82
About GE Logiq E9 Contral Board Information
1. Control panel layout
The control panel design of GE Logiq E9 is ergonomic, which makes it easy for operators to quickly and accurately adjust various parameters during the inspection process. The control panel usually includes:
Touch panel: used for touch operation, supports gesture control and multi-touch, and improves operating efficiency.
Touch panel brightness control: used to adjust the brightness of the touch panel to adapt to different working environments and light conditions.
Video and audio switch: control the display of ultrasound images and the output of audio signals.
TGC (time gain compensation) control: used to adjust the gain of ultrasound signals at different depths to compensate for signal attenuation and improve image quality.
Reverse key: used to flip ultrasound images for easy observation from different angles.
Additional function keys: provide additional function options, such as image optimization, scanning mode switching, etc.
Keyboard: full-size backlit alphabetic keyboard, ergonomic hard key layout, convenient for inputting text and data.
Mode/Gain key: used to select ultrasound imaging mode and adjust gain.
Imaging/Measurement key: used to start imaging mode and perform various measurement operations.
Depth key: adjust the scanning depth of ultrasound images.
Imaging function keys: provide a variety of imaging function options, such as color Doppler, spectral Doppler, etc.
Freeze and print keys: used to freeze the current ultrasound image and perform printing operations.
2. Control panel functions
Image control: Through the various controls and function keys on the control panel, the operator can adjust the brightness, contrast, gain and other parameters of the ultrasound image in real time to obtain the best image quality.
Scan mode switching: The mode key on the control panel allows the operator to quickly switch between different scanning modes, such as B mode, M mode, color Doppler mode, etc., to meet different inspection needs.
Data measurement: Using the measurement keys and keyboard on the control panel, the operator can perform various measurement operations on the ultrasound image, such as distance measurement, area measurement, angle measurement, etc., to provide quantitative basis for clinical diagnosis.
System integration: The control panel of GE Logiq E9 also integrates a variety of system integration functions, such as DICOM device connection, peripheral device connection, etc., to facilitate data exchange and sharing with hospital information systems and other medical equipment.
3. Operation precautions
When operating GE Logiq E9, ensure that all controls and function keys on the control panel are in normal condition to avoid operating errors due to damage or failure.
The operator should be familiar with the layout and operation methods of the various controls and function keys on the control panel so that they can be adjusted and operated quickly and accurately during the examination.
Before performing an ultrasound imaging examination, the various settings and parameters on the control panel should be carefully checked to ensure that high-quality ultrasound images and accurate diagnostic results are obtained.
Other GE related ultrasonic components we can offer:
Brand | System | Description |

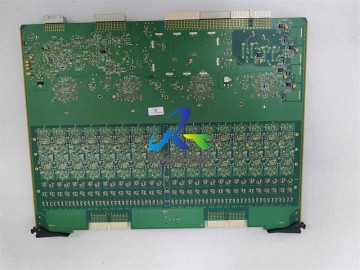

GE | Logiq E9/vivid E9 | GTX 2.4/GTX-TLP 3.0 P/N:5201044-3,5201044-4, 5201044-5 / GA200625-3 |
GE | Logiq E9 | MRX Board 5393908 |
GE | Logiq E9/vivid E9 | GFI2 25161631 |
GE | Logiq E9 | BEP Power 5393800-3,5166790-2/5393801 |
GE | Logiq E9 | Main power supply (5205052-3) |
Logiq E9 | Contral board 9375-00639-001/2 | |
GE | Logiq E9/vivid E9 | Touch screen CORE OPERATOR PANEL, UPPER 4- touch panel GB200091/5207000-53 |
GE | Logiq E9 | trackball |
GE | Logiq E9 | LCD monitor 5392293-21/ KT-LM190SDG-U |
GE | Voluson E6/E8 | RSR14.P9 KTI196357 |
GE | Voluson E6/E8 | RST20.P8 KTI301148_2 |
GE | Voluson E6/E8/E10 | RSX |
GE | Voluson E6/E8/E10 | RFM201 FE mainboard |
GE | Voluson E6/E8/E10 | RFM221 FE mainboard |
GE | Voluson E6/Voluson E8 | RFI/ RFI21b Board KTI300614-4 /KTI302197-6 |
GE | Voluson E6/Voluson E9 | KTI302171-4 |
GE | Voluson E6/Voluson E8 | RSR KTI301394-2/KTI196357/KTZ196310 |
GE | Voluson E6/Voluson E8 | AC/DC Power KTI300627-4/KTI300242-3 |
GE | Voluson E6/Voluson E8 | power supply-KTZ302752 |
GE | Voluson E6/Voluson E8 | GBF80A KTI300741 |
GE | Voluson E6/Voluson E8 | GE Voluson E8 C2D E6400 BEP Board # KTI302072 |
